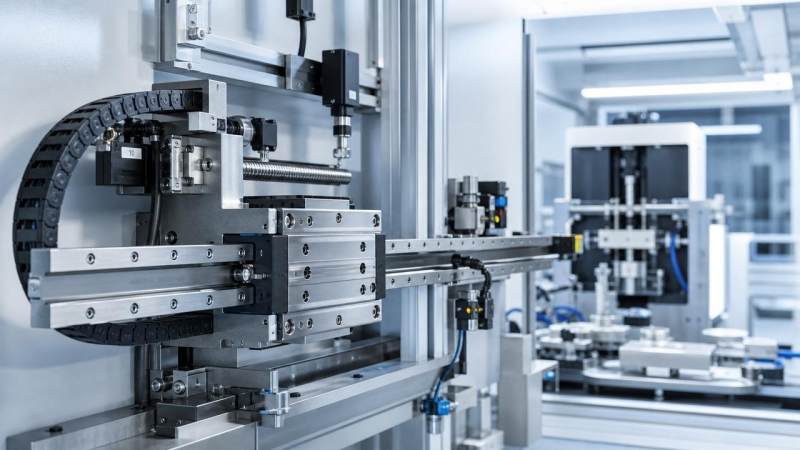

Many engineers and project leaders rely on linear guide load rating benchmarks as a quick filter, yet these figures often overlook the real operating conditions that determine performance, safety, and lifecycle cost. For projects in regulated and precision-driven sectors, understanding what the benchmarks miss is essential to making sound technical decisions and reducing downstream risk.

That issue is especially relevant in medical technology, laboratory automation, imaging subsystems, and life science equipment, where motion reliability is tied not only to uptime, but also to calibration stability, traceability, and compliance. A published load number may look sufficient on paper, yet a guide that performs well in a catalog test can fail early when exposed to eccentric loading, aggressive duty cycles, contamination, or strict positioning tolerances.

For project managers and engineering leads, the practical question is not whether linear guide load rating benchmarks matter, but how far they can be trusted without deeper verification. In procurement reviews, design gates, and supplier comparisons, the benchmark should be treated as a starting point within a broader assessment model that includes application geometry, environmental stress, serviceability, and regulatory impact.

Why published load ratings rarely reflect real operating risk

Most linear guide load rating benchmarks are derived from controlled test conditions. They typically assume consistent mounting accuracy, stable lubrication, known preload, and a defined load direction. In real projects, at least 4 variables often shift at once: payload distribution, acceleration profile, contamination exposure, and installation quality.

In medical and bioscience equipment, these deviations are not minor. A diagnostic analyzer may cycle 20,000 to 80,000 strokes per month. A surgical positioning axis may carry modest mass but require repeatability within tight error bands, sometimes below ±10 to ±50 microns depending on subsystem design. Under those conditions, the difference between nominal capacity and usable field performance becomes significant.

Static and dynamic ratings tell only part of the story

Static load rating helps estimate resistance to permanent deformation, while dynamic load rating is used for life calculation under repeated motion. Both are useful. Neither fully captures vibration spikes, emergency stops, off-center tooling, cable drag forces, or thermal expansion from nearby electronics.

A guide sized at a comfortable 1.5 safety factor for simple horizontal motion may effectively drop below that margin when moments are introduced around pitch, yaw, or roll axes. In compact med-tech platforms, where envelope size is limited, even a 15 to 25 mm offset in load center can change bearing stress distribution more than project teams initially expect.

Common assumptions that create blind spots

• Assuming catalog ratings include all moment loads without recalculation
• Using peak payload mass instead of the true moving mass, including fixtures, cabling, tubing, and adapters
• Ignoring shock loading during start-stop motion above 1 g acceleration
• Treating cleanroom or laboratory environments as contamination-free despite fine particulates, reagent aerosols, or cleaning chemical exposure
• Comparing suppliers by one load number without checking rail length, block count, preload class, and lubrication interval

The table below outlines several factors that linear guide load rating benchmarks often miss when teams move from vendor datasheets to actual equipment architecture.

The key takeaway is that a benchmark can be technically correct and still operationally incomplete. For highly regulated equipment, that gap affects maintenance planning, spare strategy, qualification testing, and even field complaint exposure.

Why this matters more in regulated and precision-driven sectors

In hospital infrastructure, IVD systems, and imaging assemblies, motion components are part of a wider quality chain. If a guide degrades earlier than expected, the visible failure may be vibration, drift, noise, or failed calibration, not a dramatic mechanical collapse. Those soft failures are harder to detect and can trigger service calls, repeated validation, or replacement of connected assemblies.

For project leaders, the cost impact can spread across 3 layers: direct component replacement, engineering rework, and delayed release or installation. A 6-week sourcing delay for a revised axis module can be more damaging than the original hardware cost difference that procurement aimed to save.

The hidden variables behind true guide performance

To use linear guide load rating benchmarks effectively, teams need a broader engineering screen. The most reliable approach is to convert the catalog number into an application-specific stress model that reflects motion profile, mounting conditions, environmental exposure, and required service life.

Load direction, moment loads, and center-of-gravity shift

A moving assembly rarely applies pure vertical load. In automated lab equipment, pumps, grippers, reagent lines, cameras, and shields often shift the center of gravity away from the carriage. That creates overturning moments which can become the actual sizing limit even when direct load remains below 50% of the published rating.

As a rule of project review, teams should map at least 3 moment axes and examine worst-case positions across the full stroke. The highest stress point is often at stroke ends, during fast reversal, or when a cantilevered payload reaches maximum extension.

Duty cycle and maintenance reality

A guide selected for 8-hour use may behave very differently in 24/7 equipment. Many life science and hospital systems operate in 2 or 3 shifts, with variable idle periods and repeated cleaning cycles. If relubrication is specified every 3 months in theory but only happens every 6 to 9 months in practice, usable life can fall sharply.

Project managers should ask not only for the nominal life estimate, but also for the life estimate under reduced lubrication discipline, elevated duty cycle, and contamination risk. This creates a more realistic maintenance budget and lowers service surprises after deployment.

Mounting rigidity and installation tolerance

In compact devices, chassis deflection can be a bigger problem than the guide itself. If the support surface is not flat enough or loses stiffness under thermal load, carriage preload becomes uneven. The result may be local wear, friction variation, or inconsistent motion quality long before rated load is reached.

Even small deviations matter. For short-travel axes in analytical instruments, installation flatness errors measured in tenths of a millimeter across the mounting base can influence repeatability, noise, and bearing stress. That is why supplier data should be reviewed together with frame design and assembly process capability.

A practical five-point verification checklist

1. Confirm total moving mass, including tooling, harnesses, tubing, and covers
2. Calculate direct loads plus pitch, yaw, and roll moments at minimum and maximum extension
3. Check acceleration, deceleration, and emergency stop conditions over at least 1 full cycle model
4. Match lubrication method and interval to the expected service environment and access limitations
5. Review mounting flatness, support rigidity, and assembly tolerance stack-up before procurement release

The following table can help project teams turn general benchmark data into a more decision-ready screening framework during design review or supplier evaluation.

This framework makes linear guide load rating benchmarks more useful because it links catalog values to design ownership, field service, and procurement consequences. It also helps cross-functional teams compare alternatives on lifecycle value rather than on unit price alone.

How project managers should evaluate suppliers and specifications

For engineering project leaders, the biggest mistake is treating the motion supplier quote as a closed technical answer. In regulated industries, supplier data needs to support specification clarity, validation planning, and change control. The goal is not simply to buy a guide that fits, but to buy one that remains supportable across qualification, deployment, and service phases.

Questions to ask before approving a design freeze

• Under what conditions were the load ratings and life estimates derived?
• What preload options are available, and how do they affect friction and stiffness?
• How does the supplier recommend accounting for moment loads and shock events?
• What lubricant type, seal arrangement, and service interval are suitable for chemical cleaning exposure?
• What installation tolerances must the machine frame hold to preserve rated performance?
• What documentation can support validation, incoming inspection, and traceable change management?

These questions matter because many downstream issues begin as specification gaps. If a procurement package only lists rail size and rated load, it may not protect the project against lifecycle variations. A better specification package usually includes 6 to 8 checkpoints covering load case, precision target, environment, lubrication, service interval, and acceptance criteria.

What strong procurement documentation should include

In medical and life science equipment programs, documentation quality can be as important as component quality. A robust purchasing specification should define expected duty cycle, maximum acceleration, target service window, contamination class, cleaning exposure, mounting assumptions, and replacement constraints. This reduces ambiguity between design intent and supplier interpretation.

Where possible, teams should also separate minimum acceptable performance from preferred performance. For example, a subsystem may require 2-year minimum service life under standard use, while the preferred target is 3 to 5 years with routine maintenance. That distinction supports risk-based sourcing instead of vague overdesign.

Three procurement red flags

1. A supplier offers a high load rating but no clear method for moment calculation or installation tolerance guidance
2. Life claims are presented without maintenance assumptions or environmental limits
3. Equivalent alternatives are proposed without confirming preload, seal configuration, or friction behavior

When these gaps appear, project teams should pause before release. A delay of 3 to 5 days during technical clarification is often preferable to a redesign cycle that affects validation, manufacturing documentation, and field service planning.

A practical benchmark strategy for medical and life science systems

The most effective use of linear guide load rating benchmarks is to place them inside a risk-based decision workflow. For Global Medical & Life Sciences environments, that means evaluating load ratings alongside precision tolerance, contamination exposure, maintenance accessibility, and compliance-sensitive documentation needs.

A four-step decision model

1. Screen candidate guides by published rating, size envelope, and basic moment capacity
2. Model actual load cases, duty cycle, and environmental stress under worst-case operating scenarios
3. Review maintainability, documentation readiness, and replacement strategy across the expected product lifecycle
4. Validate the selection through prototype testing, acceptance thresholds, and supplier change-control alignment

This approach improves decision quality because it balances engineering, procurement, and service priorities. It also helps teams avoid overreliance on a single catalog metric when system risk is driven by a combination of load, motion, cleanliness, and uptime requirements.

Where G-MLS-style benchmarking adds value

Independent technical benchmarking is useful when internal teams need a clearer view of how components perform within regulated equipment ecosystems. Cross-sector comparison helps decision-makers interpret not just mechanical capacity, but also the broader implications for imaging reliability, IVD throughput, laboratory automation stability, and hospital equipment maintainability.

For project managers, that translates into better supplier questioning, sharper specification writing, and more defensible procurement choices. Instead of asking only whether a guide can carry the load, teams can ask whether it can do so for the required number of cycles, under the real cleaning regime, within the accepted precision window, and with manageable service effort.

Linear guide load rating benchmarks remain valuable, but only when they are interpreted as one input among several. In precision medicine, bioscience, and hospital technology projects, the real benchmark is not the catalog number alone. It is the component’s ability to perform consistently under actual load paths, real duty cycles, environmental exposure, and documented maintenance conditions.

If your team is comparing motion component options for diagnostic equipment, laboratory platforms, imaging subsystems, or other regulated assemblies, a deeper review can reduce lifecycle cost and technical risk before they become field issues. Contact G-MLS to obtain a more rigorous benchmarking perspective, discuss application-specific evaluation criteria, and explore solutions aligned with engineering integrity and procurement confidence.
